Refractory cement

Zircocem-5

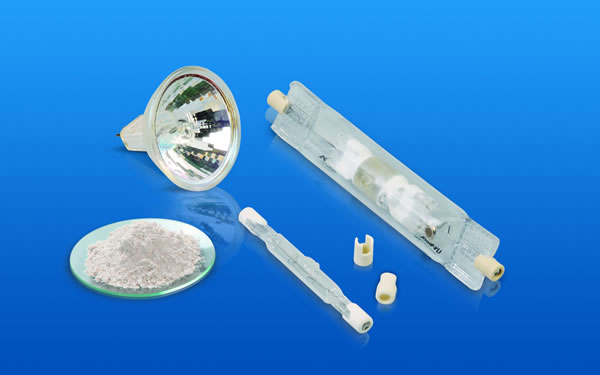

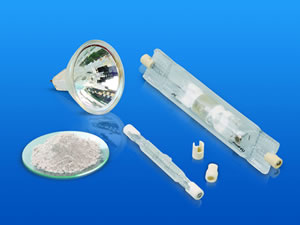

Zircocem 5 is a zircon based refractory cement which can be used on components and in areas where it is essential to have strong electrical resistance and thermal shock resistance. It can sustain high temperatures up to 1450^oC, is non-corrosive, and cures at ambient temperatures by internal chemical setting. It may be applied to most surfaces, making it ideal for applications such as the fixing or assembling of high intensity halogen incandescent light bulbs.

Zircocem-5F

Zircocem 5F is an inorganic, non-corrosive ceramic adhesive cement, which cures by chemical setting. The cement has excellent electrical insulation and thermal conductivity once applied, so is ideal for any components or areas where these qualities are essential. As a refractory cement, Zircocem 5F can be applied to a wide range of surfaces, and can withstand temperatures of up to 1450^oC, it is ideal for uses like potting applications such as high temperature air filter assemblies

Advantages

• Cures at room temperatures
• Adheres to most surfaces (Glass, ceramic, metal)
• Excellent thermal conductivity
• Refractory cement for use at high temperatures


main applications for zircocem-5

• Fixing and assembling high intensity halogen incandescent light bulbs
• Embedding electrical heating elements
• Insulation coating for wire wound resistors and coils
• Mechanical sealing of any parts where it essential to have high electrical and thermal shock resistance

preparation

Mix with water in ratio 4 parts powder to 1 part water by weight and apply by spray, trowel or brush (depending upon application and consistency). Leave to air dry at room temperature for 24 hours.

main applications for zircocem-5F

• Potting of high temperature air filter assemblies

• High intensity incandescent lighting bulbs

• Embedding electrical heating elements

• Coating resistors and coils

• Potting or sealing of parts where high electrical and thermal shock resistance is essential

• High temperature filter adhesive
• High temperature refractory applications

preparation

Mix with water in the ratio 10 parts powder to 1 part water by weight and apply by brush or trowel. Adjust consistency to suit method of application. Allow to air dry for 24 hours at room temperature.

Typical characteristics
Max. Service temperature: 1450⁰C
Co-efficient of Thermal Expansion: 2.5 - 3 x 10^-6
Dielectric strength: 2165 Volts/mm (at 21⁰C )
Volume resistivity (Ohm-cm): 1.45 x 10¹¹
Thermal Conductivity W/m / ⁰K: 7 – 8
